Large-scale Parts Assembly Management

Measure large parts with ease right on the assembly floor.
Bring precision measurement tools to your large-scale parts for accurate alignment during assembly. FARO 3D measurement and projection solutions make it possible.

Precise and Fast Large-scale Assembly Technologies

Assembling large parts for airplanes, boats, military equipment, the energy industry and other applications can be challenging. Identifying part errors and alignment issues early in the assembly process is critical for reducing waste and costs. Likewise, moving these parts to a fixed coordinate measuring machine (CMM) can present a further stumbling block. Portable FARO Vantage Laser Trackers and Tracer Laser Projectors eliminate this quality-control bottleneck by optimizing workflow productivity for large-scale applications, including assembly alignment, part and assembly inspection, machine installation and alignment, and reverse engineering.

Case Study

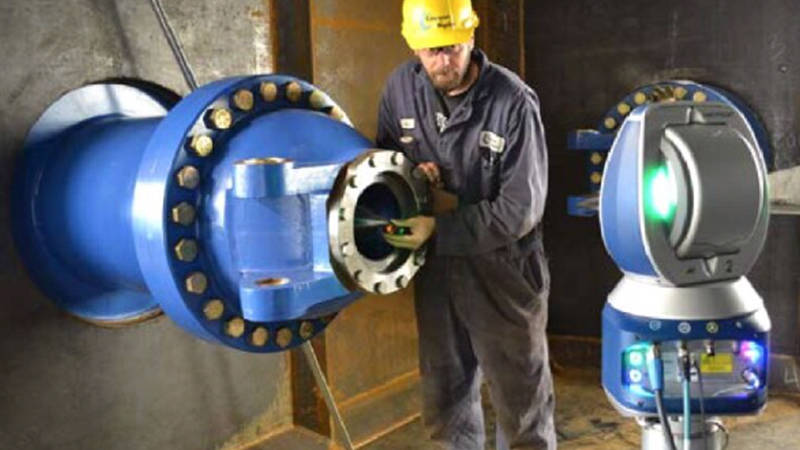

Canyon Hydro Enables Long-term Growth with FARO

The hydroelectric systems manufacturing company thinks big for its large-parts assembly needs, adopting FARO’s 3D measuring technology to boost the speed and accuracy of fabrication, installations and alignment.
  • Solutions
  • Resources

Vantage Laser Trackers

Proving the way forward for fast and accurate measurements for assembly, alignment and reverse engineering needs

Super 6DoF TrackArm

Combines the measurement accuracy of laser tracking with the flexibility of a FaroArm or ScanArm; ideal for hard-to-reach places.

Tracer Laser Projectors

Accurately project a laser outline onto a 3D surface or object; ideal for composite layup applications.

BuildIT Projector Software

For planning, generating and operating laser projection projects.

CAM2 Software

Designed to easily and intuitively manage quality assurance and inspection tasks, featuring guided workflows and extensive reporting capabilities.
Video

How to Perform Detailed Measurement on Large Parts and Assemblies

Capturing accurate, detailed 3D measurement data on extremely large parts is an equally large challenge, but FARO solutions make it easy.
Video

Large-part Inspection with a FARO Laser Tracker

The integrated laser tracking system helps you ensure that every part is manufactured to exact specifications.
Article

FARO Laser Tracker used in NASA’s Ares I Project

With NASA’s need for high precision, they turned to the FARO Laser Tracker for its affordability, portability and accuracy as they assembled spacecraft and rocket parts for the Ares I program.

Solutions

Vantage Laser Trackers

Proving the way forward for fast and accurate measurements for assembly, alignment and reverse engineering needs

Super 6DoF TrackArm

Combines the measurement accuracy of laser tracking with the flexibility of a FaroArm or ScanArm; ideal for hard-to-reach places.

Tracer Laser Projectors

Accurately project a laser outline onto a 3D surface or object; ideal for composite layup applications.

BuildIT Projector Software

For planning, generating and operating laser projection projects.

CAM2 Software

Designed to easily and intuitively manage quality assurance and inspection tasks, featuring guided workflows and extensive reporting capabilities.

Not sure which solution is right for your large-scale assembly operations?

Contact Our Experts
